Warships of Italy: Regia Marina Battleships Andrea Doria, Duilio, Conte di Cavour, Giulio Cesare, Littorio, Vittorio Veneto, Roma

Regia Marina Battleships Andrea Doria, Duilio, Conte di Cavour, Giulio Cesare, Littorio, Vittorio Veneto, Roma

Italian battleship Andrea Doria class

The Andrea Doria class (usually called Duilio class in Italian sources) was a pair of dreadnought battleships built for the Royal Italian Navy (Regia Marina) between 1912 and 1916. The two ships—Andrea Doria and Duilio—were completed during World War I. The class was an incremental improvement over the preceding Conte di Cavour class. Like the earlier ships, Andrea Doria and Duilio were armed with a main battery of thirteen 305-millimeter (12 in) guns.The two ships were based in southern Italy during the First World War to help ensure that the Austro-Hungarian Navy's surface fleet would be contained in the Adriatic. Neither vessel saw any combat during the conflict. After the war, they cruised the Mediterranean and were involved in several international incidents, including at Corfu in 1923. In 1933, both ships were placed in reserve. In 1937 the ships began a lengthy reconstruction. The modifications included removing their center main battery turret and boring out the rest of the guns to 320 mm (12.6 in), strengthening their armor protection, installing new boilers and steam turbines, and lengthening their hulls. The reconstruction work lasted until 1940, by which time Italy was already engaged in the Second World War.The two ships were moored in Taranto on the night of 11/12 November 1940 when the British launched a carrier strike on the Italian fleet. In the resulting Battle of Taranto, Duilio was hit by a torpedo and forced to beach to avoid sinking. Andrea Doria was undamaged in the raid; repairs for Duilio lasted until May 1941. Both ships escorted convoys to North Africa in late 1941, including Operation M42, where Andrea Doria saw action at the inconclusive First Battle of Sirte on 17 December. Fuel shortages curtailed further activities in 1942 and 1943, and both ships were interned at Malta following Italy's surrender in September 1943. Italy was permitted to retain both battleships after the war, and they alternated as fleet flagship until the early 1950s, when they were removed from active service. Both ships were scrapped after 1956.

The ships of the Andrea Doria class were 168.9 meters (554 ft 2 in) long at the waterline, and 176 meters (577 ft 5 in) overall. They had a beam of 28 meters (91 ft 10 in), and a draft of 9.4 meters (30 ft 10 in). They displaced 22,956 tonnes (22,593 long tons) at normal load, and 24,729 tonnes (24,338 long tons) at deep load.[2] They were provided with a complete double bottom and their hulls were subdivided by 23 longitudinal and transverse bulkheads. The ships had two rudders, both on the centerline. They had a crew of 31 officers and 969 enlisted men. (Wikipedia)

Battleship Andrea Doria

(USN Photo)

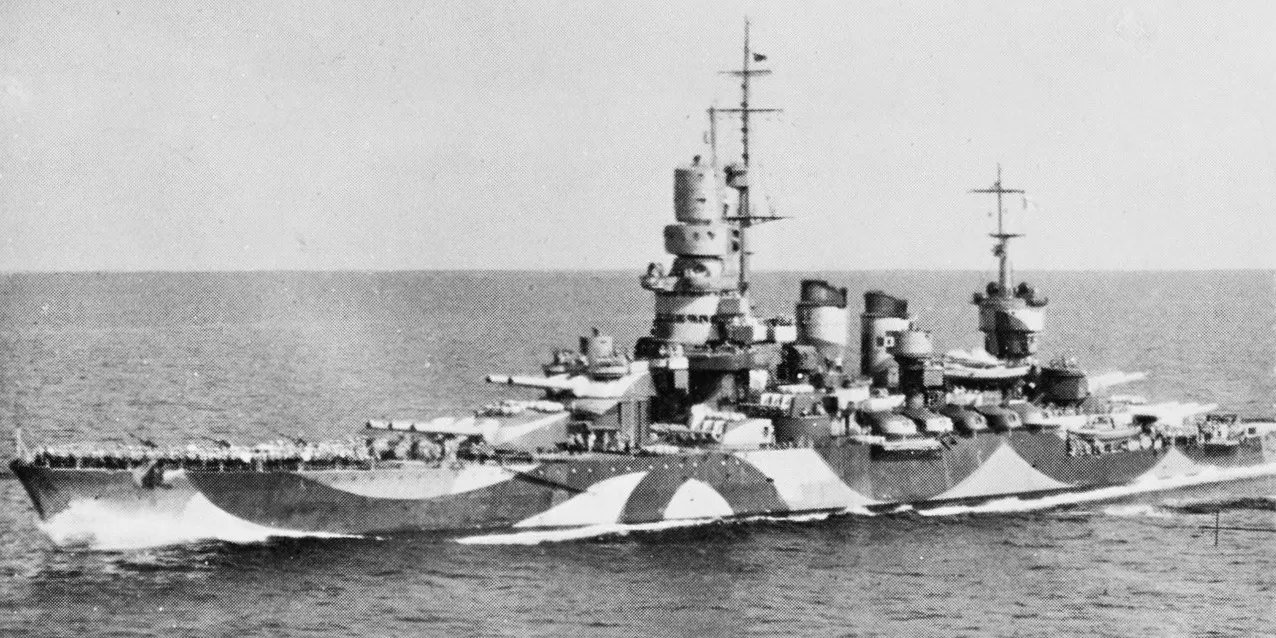

Italian battleship Andrea Doria surrendering at Malta on 9 September 1943.

Andrea Doria was the lead ship of her class of battleships built by the Regia Marina (Royal Navy). The class included only one sister ship, Duilio. Andrea Doria was named after the 16th-century Genoese admiral of the same name. Laid down in March 1912, the battleship was launched a year later in March 1913, and completed in March 1916. She was armed with a main battery of thirteen 305 mm (12 in) guns and had a top speed of 21 knots (39 km/h; 24 mph).Andrea Doria saw no major action in the First World War, and served extensively in Mediterranean in the 1920s and 1930s. She was involved in the suppression of rebels in Fiume and the Corfu incident in the 1920s. Starting in 1937, Andrea Doria underwent an extensive modernization, which lasted until 1940. She saw relatively little action during the Second World War; she was tasked with escorting convoys to Libya throughout 1941 and into 1942, during which she engaged in the inconclusive First Battle of Sirte. After the Armistice in September 1943 the ship was sailed to Malta and interned by the Allies. She remained there until 1944, when she was permitted to return to Italian ports. Andrea Doria survived the war and soldiered on in the post-war navy as a training ship until 1956. Paid off in September, she was formally stricken from the naval register on 1 November and sold for scrapping later that year. (Wikipedia)

Italian battleship Duilio

(Regia Marina Photo)

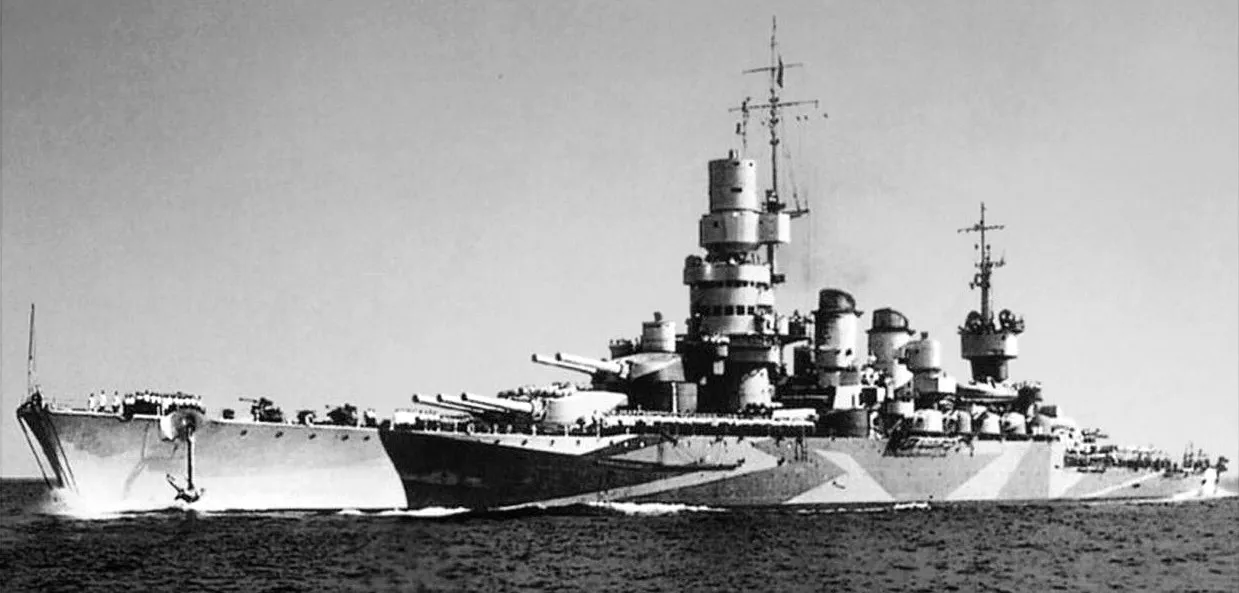

Duilio (often known as Caio Duilio) was an Italian Andrea Doria-class battleship that served in the Regia Marina during the First World War and the Second World War. She was named after the Roman fleet commander Gaius Duilius. Duilio was laid down in February 1912, launched in April 1913, and completed in May 1916. She was initially armed with a main battery of thirteen 305 mm (12.0 in) guns, but a major reconstruction in the late 1930s replaced these with ten 320 mm (13 in) guns. Duilio saw no action during the First World War owing to the inactivity of the Austro-Hungarian fleet during the conflict. She cruised the Mediterranean in the 1920s and was involved in the Corfu incident in 1923.

During the Second World War, she participated in numerous patrols and sorties into the Mediterranean, both to escort Italian convoys to North Africa and in attempts to catch the British Mediterranean Fleet. In November 1940, the British launched an air raid on Taranto; Duilio was hit by one torpedo launched by a Fairey Swordfish torpedo bomber, which caused significant damage. Repairs lasted some five months, after which the ship returned to convoy escort duties. A fuel shortage immobilized the bulk of the Italian surface fleet in 1942, and Duilio remained out of service until the Italian surrender in September 1943. She was thereafter interned at Malta until 1944, when the Allies permitted her return to Italian waters. She survived the war, and continued to serve in the post-war Italian navy, primarily as a training ship. Duilio was placed in reserve for a final time in 1953; she remained in the Italian navy's inventory for another three years before she was stricken from the naval register in late 1956 and sold for scrapping the following year. (Wikipedia)

Italian Conte di Cavour–class battleships

The Conte di Cavour–class battleships were a group of three dreadnoughts built for the Royal Italian Navy (Regia Marina) in the 1910s. The ships were completed during World War I. In December 1915, and January 1916, when the Serbian army was driven by the German foces under General von Mackensen toward the Albanian coast, 138,000 Serbian infantry and 11,000 refugees were ferried across the Adriatic and landed in Italy in 87 trips by the Conte di Cavour and other shps of the Italian Navy under the command of Admiral Conz. These ships also carried 13,000 cavalrymen and 10,000 horses of the Serbian army to Corfu in 13 crossings from the Albanian port of Vallons. Leonardo da Vinci was sunk by a magazine explosion in 1916 and sold for scrap in 1923. The two surviving ships, Conte di Cavour and Giulio Cesare, supported operations during the Corfu Incident in 1923. They were extensively reconstructed between 1933 and 1937 with more powerful guns, additional armour and considerably more speed than before.

Both ships participated in the Battle of Calabria in July 1940, when Giulio Cesare was lightly damaged. They were both present when British torpedo bombers attacked the fleet at Taranto in November 1940, and Conte di Cavour was torpedoed. She was grounded with most of her hull underwater and her repairs were not completed before the Italian surrender in September 1943. Conte di Cavour was scrapped in 1946. Giulio Cesare escorted several convoys, and participated in the Battle of Cape Spartivento in late 1940 and the First Battle of Sirte in late 1941. She was designated as a training ship in early 1942, and escaped to Malta after Italy surrendered. The ship was transferred to the Soviet Union in 1949 and renamed Novorossiysk. The Soviets also used her for training until she was sunk when a mine exploded in 1955. She was scrapped in 1957. (Wikipedia)

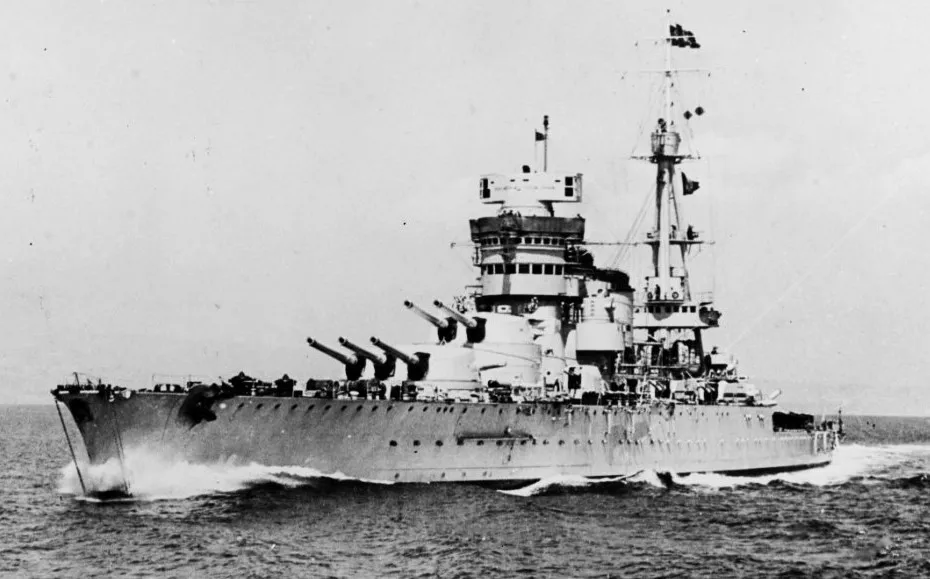

Italian battleship Conte di Cavour

(Regia Marina Photo)

Conte di Cavour was the name ship of the three Conte di Cavour-class dreadnought battleships built for the Royal Italian Navy (Regia Marina) in the 1910s. Completed in 1915 she served during the First World War, although she was little used and saw no combat. The ship supported operations during the Corfu Incident in 1923 and spent much of the rest of the decade in reserve. She was rebuilt between 1933 and 1937 with more powerful guns, additional armor and considerably more speed than before.During the Second World War, both Conte di Cavour and her sister ship, Giulio Cesare, participated in the Battle of Calabria in July 1940, where the latter was lightly damaged. Conte di Cavour was badly damaged when British torpedo bombers attacked the fleet at Taranto in November 1940. She was deliberately run aground, with most of her hull underwater, and repairs were not completed before the Italian armistice in September 1943. The ship was then captured by the Germans, but they made no effort to finish her repairs. She was damaged in an Allied air raid in early 1945 and capsized a week later. Conte di Cavour was eventually scrapped in 1946. (Wikipedia)

Italian battleship Giulio Cesare

(Regia Marina Photo)

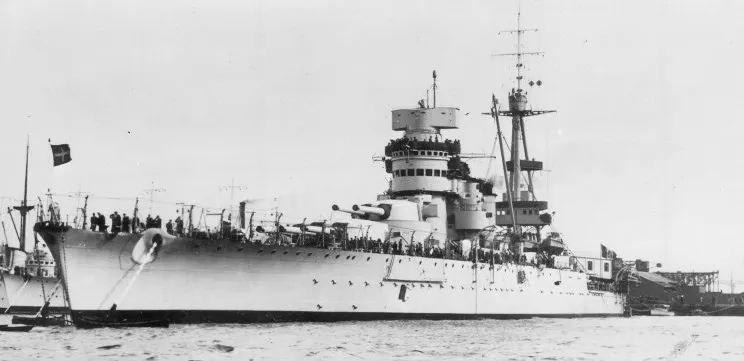

Giulio Cesare was one of three Conte di Cavour-class dreadnought battleships built for the Royal Italian Navy (Regia Marina) in the 1910s. Completed in 1914, she was little used and saw no combat during the First World War. The ship supported operations during the Corfu Incident in 1923 and spent much of the rest of the decade in reserve. She was rebuilt between 1933 and 1937 with more powerful guns, additional armor and considerably more speed than before. During the Second World War, both Giulio Cesare and her sister ship, Conte di Cavour, participated in the Battle of Calabria in July 1940, when the former was lightly damaged. They were both present when British torpedo bombers attacked the fleet at Taranto in November 1940, but Giulio Cesare was not damaged. She escorted several convoys to North Africa and participated in the Battle of Cape Spartivento in late 1940 and the First Battle of Sirte in late 1941. She was designated as a training ship in early 1942, and escaped to Malta after the Italian armistice the following year. The ship was transferred to the Soviet Union in 1949 and renamed Novorossiysk (Новороссийск). The Soviets also used her for training until she was sunk in 1955, with the loss of 617 men, by an explosion most likely caused by an old German mine. She was salvaged the following year and later scrapped. (Wikipedia)

(Regia Marina Photo)

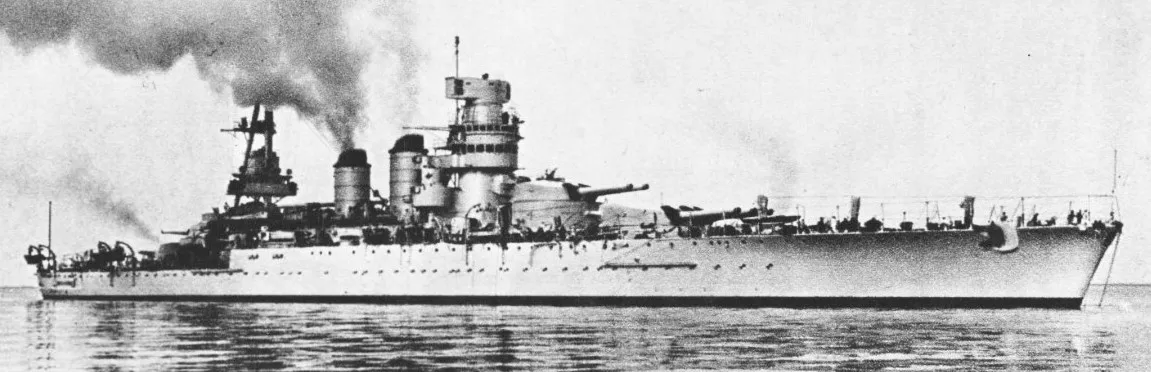

Giulio Cesare.

(Soviet Navy Photo)

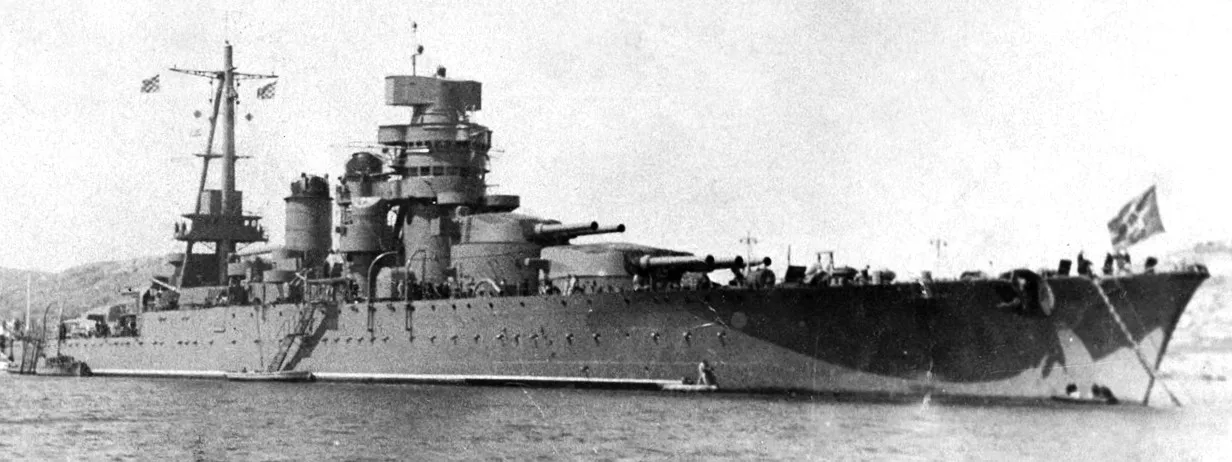

Novorossiysk at anchor at Sevastopol, flying the Soviet jack in 1950.

After the war, Giulio Cesare was allocated to the Soviet Union as part of war reparations. She was moved to Augusta, Sicily, on 9 December 1948, where an unsuccessful attempt was made at sabotage. The ship was stricken from the naval register on 15 December and turned over to the Soviets on 6 February 1949 under the temporary name of Z11 in Vlorë, Albania.[30] She was renamed Novorossiysk, after the Soviet city of that name on the Black Sea. The Soviets used her as a training ship, and gave her eight refits. In 1953, all Italian light AA guns were replaced by eighteen 37 mm 70-K AA guns in six twin mounts and six singles. Also replaced were her fire-control systems and radars. This was intended as a temporary rearmament, as the Soviets drew up plans to replace her secondary 120mm mounts with the 130mm/58 SM-2 that was in development, and the 100mm and 37mm guns with 8 quadruple 45mm. While at anchor in Sevastopol on the night of 28/29 October 1955, an explosion ripped a 4-by-14-meter (13 by 46 ft) hole in the forecastle forward of 'A' turret. The flooding could not be controlled, and she capsized with the loss of 617 men, including 61 men sent from other ships to assist.The cause of the explosion is still unclear. The official cause, regarded as the most probable, was a magnetic RMH or LMB bottom mine, laid by the Germans during the Second World War and triggered by the dragging of the battleship's anchor chain before mooring for the last time. Subsequent searches located 32 mines of these types, some of them within 50 meters (160 ft) of the explosion. The damage was consistent with an explosion of 1,000–1,200 kilograms (2,200–2,600 lb) of TNT, and more than one mine may have detonated. (Wikipedia)

Leonardo da Vinci was the last of three Conte di Cavour-class dreadnoughts built for the Regia Marina (Royal Italian Navy) in the early 1910s. Completed just before the beginning of the First World War, the ship saw no action and was sunk by a magazine explosion in 1916 with the loss of 248 officers and enlisted men. The Italians blamed Austro-Hungarian saboteurs for her loss, but it may have been accidental. Leonardo da Vinci was refloated in 1919 and plans were made to repair her. Budgetary constraints did not permit this, and her hulk was sold for scrap in 1923.

Italian Littorio-class battleships

(RAF Photo)

The only known photograph of all three Littorio Battleships taken together by an RAF high speed high altitude photo reconnaissance aircraft.

The Littorio class, also known as the Vittorio Veneto class, was a class of battleship of the Regia Marina, the Italian navy. The class was composed of four ships—Littorio, Vittorio Veneto, Roma, and Impero—but only the first three ships of the class were completed. Built between 1934 and 1942, they were the most modern battleships used by Italy during the Second World War. They were developed in response to the French Dunkerque-class battleships, and were armed with 381-millimeter (15 in) guns and had a top speed of 30 knots (56 km/h; 35 mph). The class's design was considered by the Spanish Navy, but the outbreak of the Second World War interrupted construction plans.The first two ships, Littorio and Vittorio Veneto, were operational by the early months of Italy's participation in the Second World War. They formed the backbone of the Italian fleet, and conducted several sorties into the Mediterranean to intercept British convoys, though without any notable success. The two ships were repeatedly torpedoed throughout their careers: Littorio was hit by a torpedo during the attack on Taranto in November 1940 and again in June 1942; Vittorio Veneto was torpedoed during the Battle of Cape Matapan in March 1941 and while escorting a convoy to North Africa in September 1941. Roma joined the fleet in June 1942, although all three ships remained inactive in La Spezia until June 1943, when all three were damaged in a series of Allied air attacks on the harbour.In September 1943, Italy capitulated and signed an Armistice with the Allies. Littorio was then renamed Italia. The three active battleships were transferred to Malta before they were to be interned in Alexandria. While en route to Malta, German bombers attacked the fleet with Fritz X radio-guided bombs, damaging Italia and sinking Roma. Nevertheless, Italia and Vittorio Veneto reached Malta and were interned. The incomplete Impero was seized by the Germans after Italy withdrew from the war and used as a target, until she was sunk by American bombers in 1945. Italia and Vittorio Veneto were awarded to the United States and Britain, respectively, as war prizes. Italia, Vittorio Veneto, and Impero were broken up for scrap between 1952 and 1954. (Wikipedia)

Italian battleship Littorio

(Regia Marina Photo)

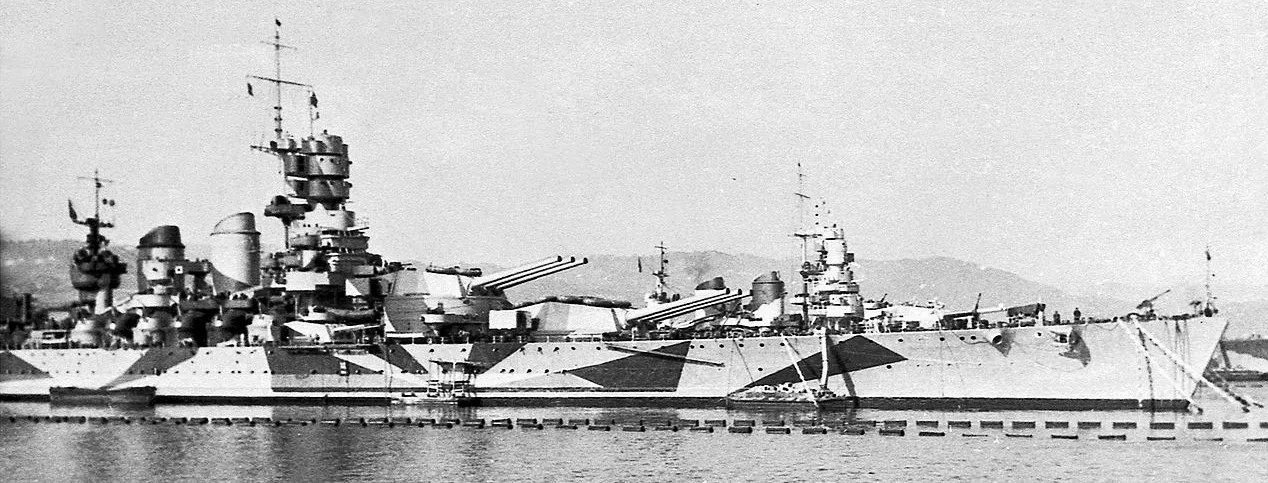

Vittorio Veneto and Littorio. La Spezia, March 1943.

Littorio was the lead ship of her class of battleship; she served in the Italian Regia Marina (Royal Navy) during the Second World War. She was named after the Lictor ("Littorio" in Italian), in ancient times the bearer of the Roman fasces, which was adopted as the symbol of Italian Fascism. Littorio and her sister ship Vittorio Veneto were built in response to the French battleships Dunkerque and Strasbourg. They were Italy's first modern battleships, and the first 35,000-ton capital ships of any nation to be laid down under the terms of the Washington Naval Treaty. Littorio was laid down in October 1934, launched in August 1937, and completed in May 1940.Shortly after her commissioning, Littorio was badly damaged during the British air raid on Taranto on 11 November 1940, which put her out of action until the following March. Littorio thereafter took part in several sorties to catch the British Mediterranean Fleet, most of which failed to result in any action, the notable exception being the Second Battle of Sirte in March 1942, where she damaged several British warships. Littorio was renamed Italia in July 1943 after the fall of the Fascist government. On 9 September 1943, the Italian fleet was attacked by German bombers while it was on its way to internment after Italy's capitulation to the Allies. During the German attack, which saw the destruction of her sister Roma, Italia herself was hit by a Fritz X radio-controlled bomb, causing significant damage to her bow. As part of the armistice agreement, Italia was interned at Malta, Alexandria, and finally in the Great Bitter Lake in the Suez Canal, where she remained until 1947. Italia was awarded to the United States as a war prize and scrapped at La Spezia in 1952–54. (Wikipedia)

Italian battleship Vittorio Veneto

(Regia Marina Photo)

Vittorio Veneto was the second member of the Littorio-class battleship that served in the Italian Regia Marina (Royal Navy) during the Second World War. The ship's keel was laid down in October 1934, launched in July 1937, and readied for service with the Italian fleet by August 1940. She was named after the Italian victory at Vittorio Veneto during World War I, and she had three sister ships: Littorio, Roma, and Impero, though only Littorio and Roma were completed during the war. She was armed with a main battery of nine 381-millimeter (15.0 in) guns in three triple turrets, and could steam at a speed of 30 knots (56 km/h; 35 mph).Vittorio Veneto saw extensive service during the war. The ship escaped undamaged during the British raid on Taranto in November 1940. Early in the war, she participated in the Battle of Cape Spartivento in November 1940 and the Battle of Cape Matapan in March 1941 where she was damaged by a torpedo bomber, and then she was torpedoed by the British submarine HMS Urge in December 1941. She spent 1941 and early 1942 attempting to attack British convoys to Malta, but crippling fuel shortages in the Italian fleet curtailed activity thereafter. Vittorio Veneto was among the Italian ships that were surrendered to the Allies in September 1943 after Italy withdrew from the war, and Vittorio Veneto with the rest of the Italian fleet was taken into internment, spending the following three years under British control in Egypt. After the war, she was allocated as a war prize to Britain and subsequently broken up for scrap. (Wikipedia)

(Regia Marina Photo)

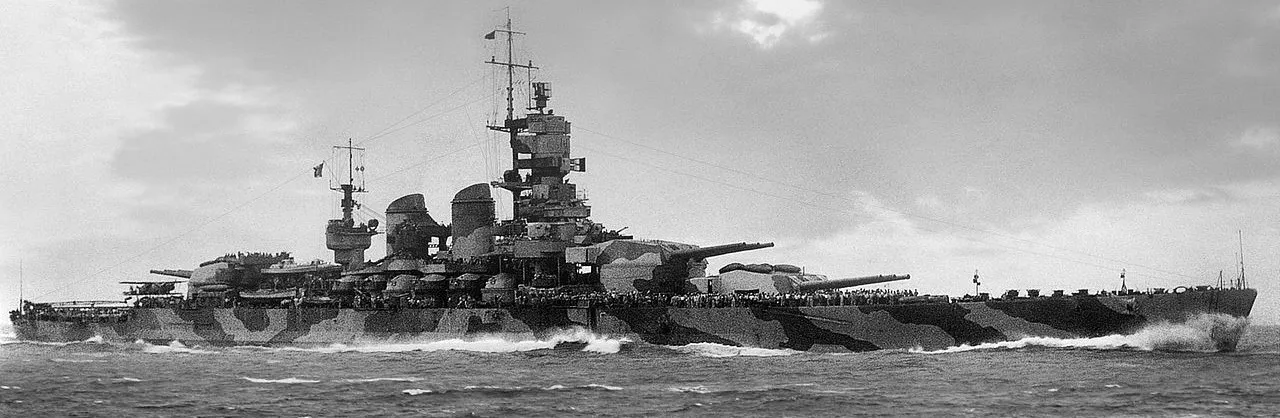

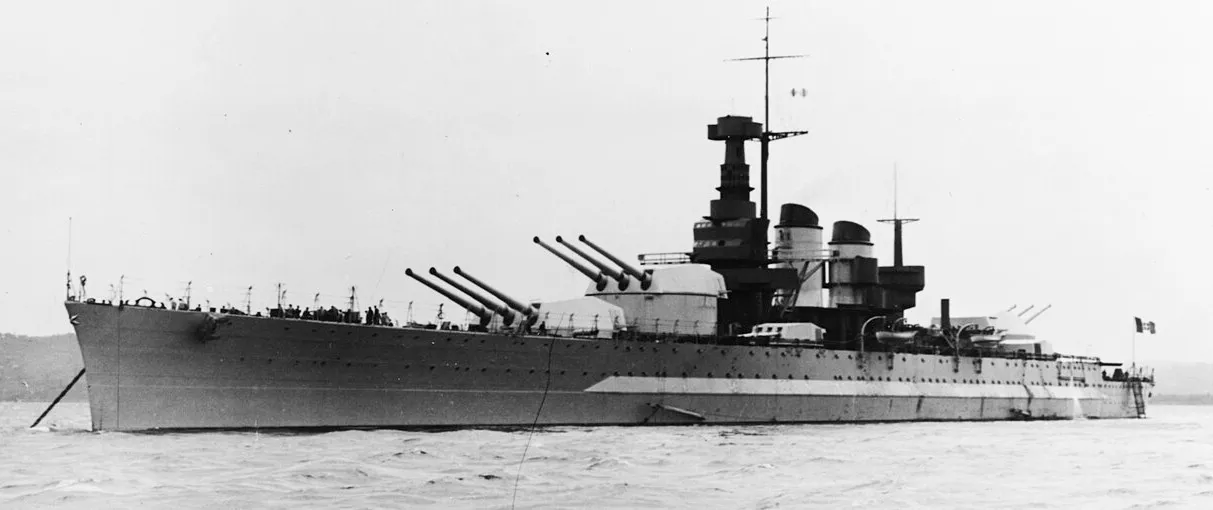

Vittorio Veneto.

Italian battleship Roma

(Regia Marina Photo)

Roma, named after two previous ships and the city of Rome, was the third Littorio-class battleship of Italy's Regia Marina (Royal Navy). The construction of both Roma and her sister ship Impero was due to rising tensions around the world and the navy's fear that only two Littorios, even in company with older pre-First World War battleships, would not be enough to counter the British and French Mediterranean fleets in case of a possible Franco-British alliance. As Roma was laid down almost four years after the first two ships of the class, some small improvements were made to the design, including additional freeboard added to the bow.Roma was commissioned into the Regia Marina on 14 June 1942, but a severe fuel shortage in Italy at that time prevented her from being deployed; instead, along with her sister ships Vittorio Veneto and Littorio, she was used to bolster the anti-aircraft defenses of various Italian cities. In this role, she was severely damaged twice in June 1943, from bomber raids on La Spezia. After repairs in Genoa through all of July and part of August, Roma was deployed as the flagship of Admiral Carlo Bergamini in a large battle group that eventually comprised the three Littorios, eight cruisers and eight destroyers. The battle group was scheduled to attack the Allied ships approaching Salerno to invade Italy (Operation "Avalanche") on 9 September 1943, but the news of the 8 September 1943 armistice with the Allies led to the operation being cancelled. The Italian fleet was instead ordered to sail to La Maddalena (Sardinia) and subsequently to Malta to surrender to the Allies.

While the force was in the Strait of Bonifacio, Dornier Do 217s of the German Luftwaffe's Kampfgeschwader 100, armed with Fritz X radio-controlled bombs, sighted the force. The first attack failed, but the second dealt Italia (ex-Littorio) and Roma severe damage. The hit on Roma caused water to flood two boiler rooms and the aft engine room, leaving the ship to limp along with two propellers, reduced power, and arc-induced fires in the stern of the ship. Shortly thereafter, another bomb slammed into the ship and detonated within the forward engine room, causing catastrophic flooding and the explosion of the number two main turret's magazines, throwing the turret itself into the sea. Sinking by the bow and listing to starboard, Roma capsized and broke in two, carrying 1,393 men—including Bergamini—down with her. (Wikipedia)

(Regia Marina Photo)

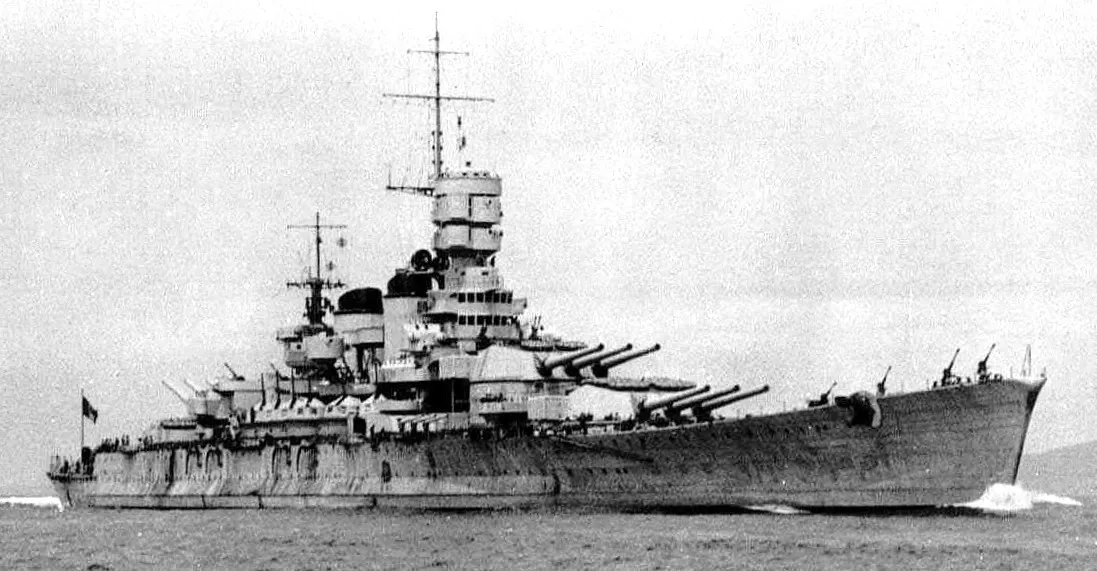

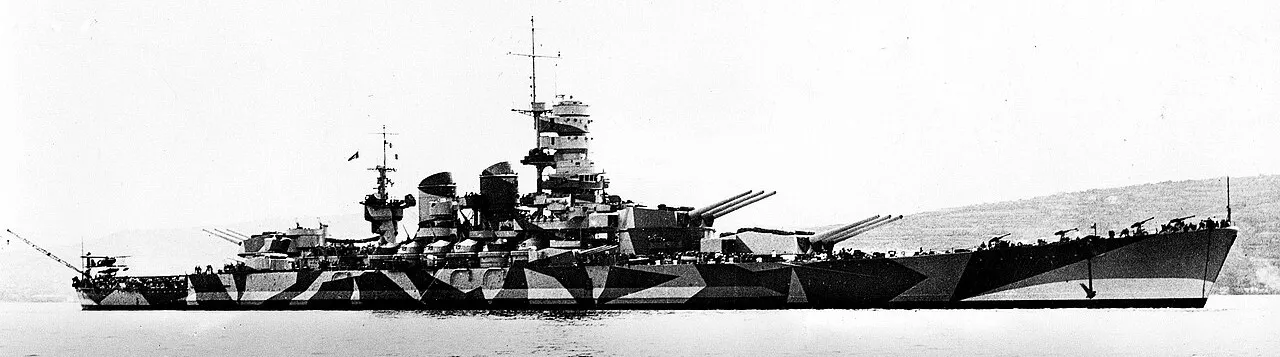

Italian battleship Roma underway prior to 9 September 1943.

(Regia Marina Photo)

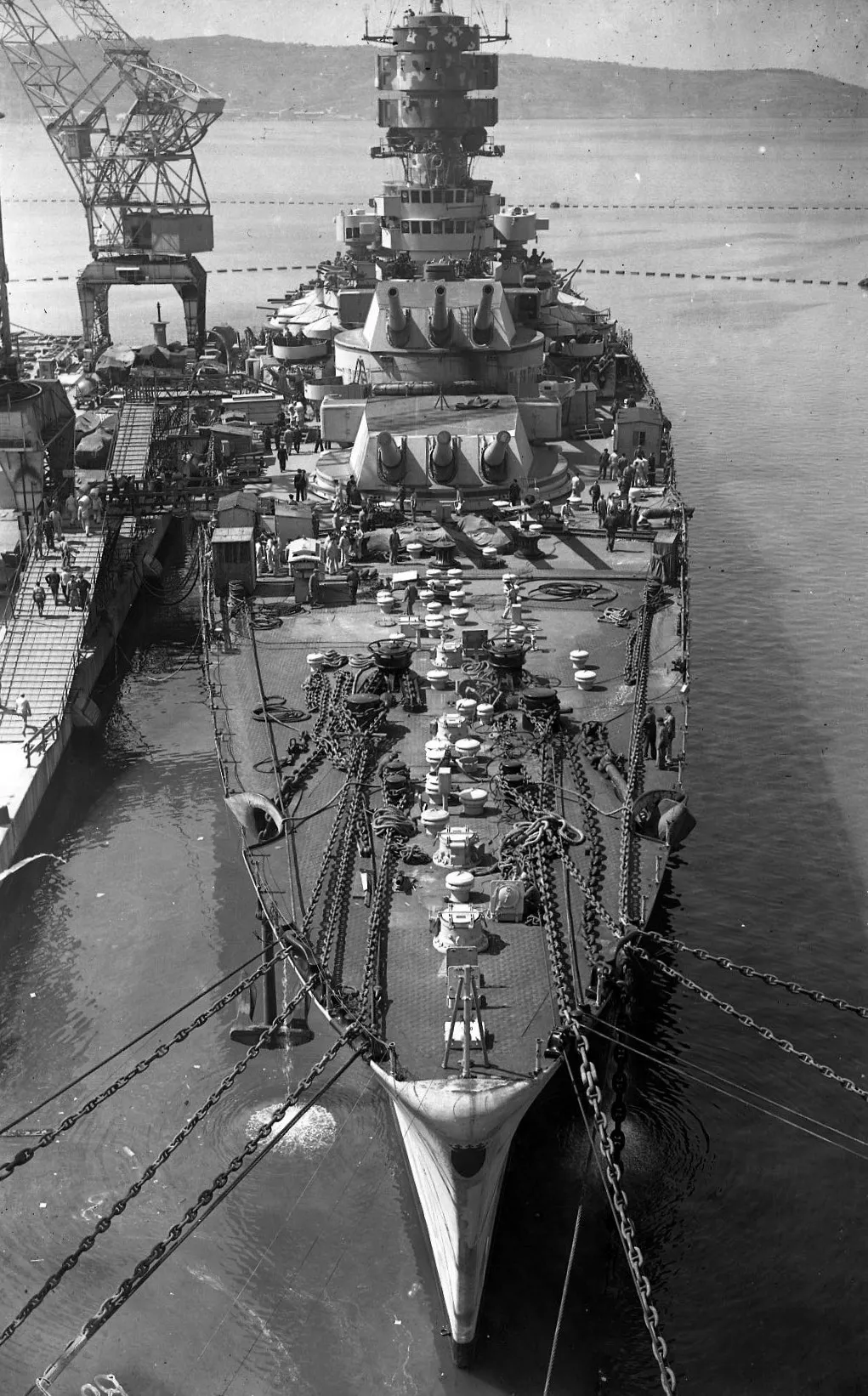

Italian battleship Roma being completed in Monfalcone.

Italian battleship Impero

Impero was the fourth Littorio-class battleship built for Italy's Regia Marina (Royal Navy) during the Second World War. She was named after the Italian word for "empire", in this case referring to the newly (1936) conquered Italian Empire in East Africa (Somaliland, Eritrea and Ethiopia territories) as a result of the Second Italo-Abyssinian War. She was constructed under the order of the 1938 Naval Expansion Program, along with her sister ship Roma.Impero was laid down in May 1938 and launched in November 1939. The entrance of Italy into the Second World War forced the Regia Marina to refocus its construction priorities on escort warships, so Impero was left incomplete. After Italy surrendered to the Allies on 8 September 1943, the rest of the Italian Navy steamed to Sardinia to rendezvous with their American contemporaries. Still incomplete in Trieste, Impero was captured by the Germans, who used the hulk for target practice. Sunk by Allied bombers in February 1945, she was refloated in 1947 and scrapped in Venice from 1948 to 1950. (Wikipedia)

‍
